ATSS BURGLAR ALARM | FIRE ALARM AUTO DIALER
2 Trigger Available NO, NC (Normally Open/Close)
On Board Keypad With 32 Bit LCD
Arm/Disarm Through Password
Changeable User Password
Trigger Can Be Switched In 3 Modes Of Operation
Instant Call/Sms Alert For Trigger Open
Individual Voice Available For Both Trigger
External Relay For Trigger Mode
20 Sec Recording Time For Individual Voice Message
Memory Available To Store 10 Phone Numbers
Recorded Message Playback Speaker Provision Available
Both Dialling Modes Can Be Used (Pulse/Tone)
Control Panel Door Tamper Available
Used For Both Intrusion And Fire Alarm Panel
Micro-Controller Based System
Solution

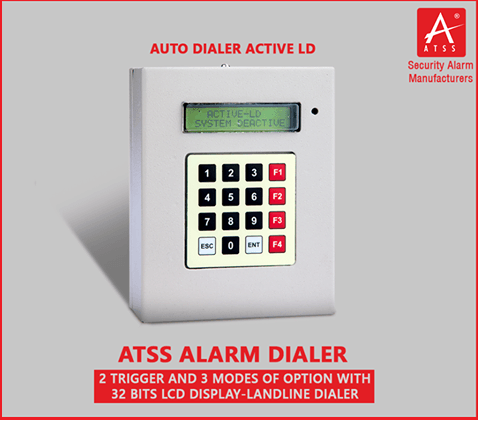

The Active LD is a telephone Based Alarm dialer; which Dials up to the Stored Numbers using the Landline Connection – Informing about the Event When the device is triggered. The System Consists of LCD Display with Keypad, 2 Triggers.
| POWER SUPPLY | |
|---|---|
| Maximum Power Consumption | 24 Watts |
| DC/AC Main Supply | 12-24 V/1 amps |
| Minimum Phone Line Voltage | 60-65 V |
| ZONES | |
| Zone Response Time | < 500 Millisecond |
| Zone Loop Resistance | < 1kilo Ohm For Normally Closed |
| Max Output Voltage/Current For Trigger Supply | 12 V/500MA |
| Max Length of Trigger Cable (multi core cable) | 150 m (Depends on cable resistance) |
| RELAY-NORMALLY CLOSED | |
| Max Voltage/Current ratings | AC 240 V/5 A |
| ENVIRONMENTAL | |
| Environment | Residential/ Commercial/ Light Industrial |
| Max Humidity | 95% Non-Condensing |
| Operating Temperature | 0° C To 45° C |
| Storage Temperature | -20° C~+60° C |
| PHYSICAL | |
| Colour | Grey Coloured Metal Box |
| Control Panel Dimensions(mm) | (H X W X L)=145*45*115 |
| Weight | 550g |
